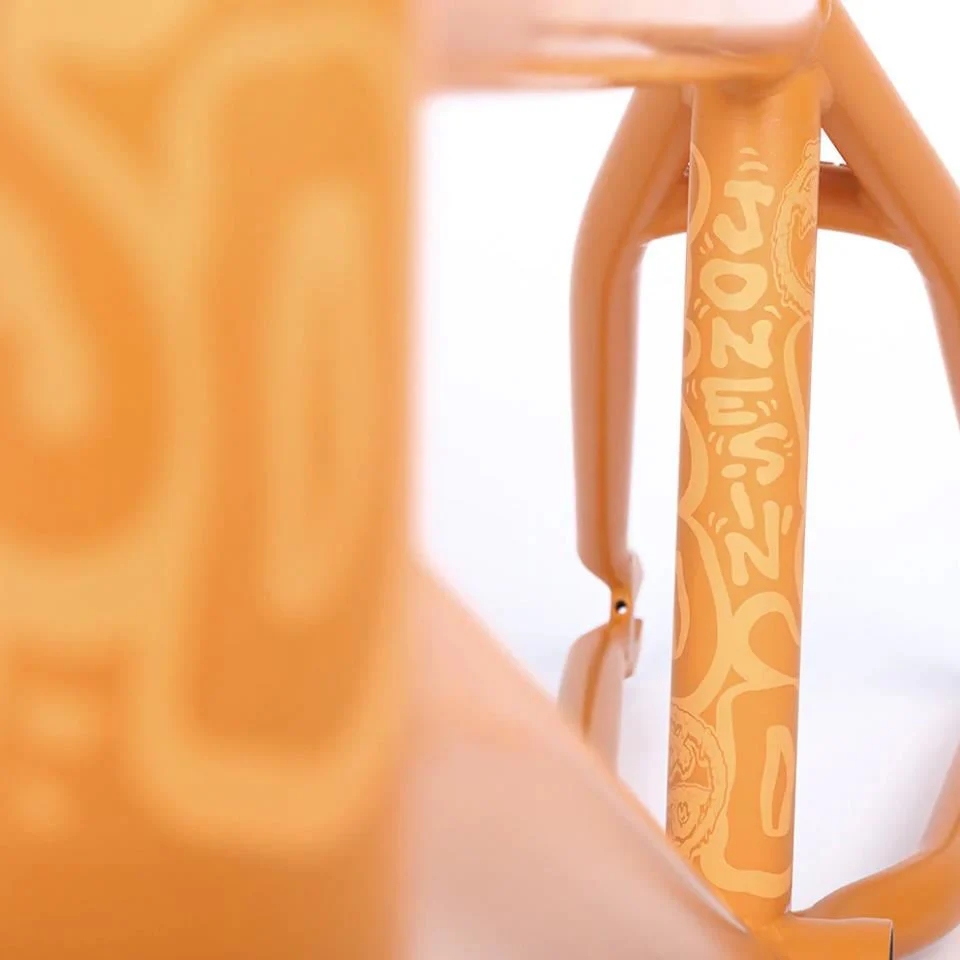

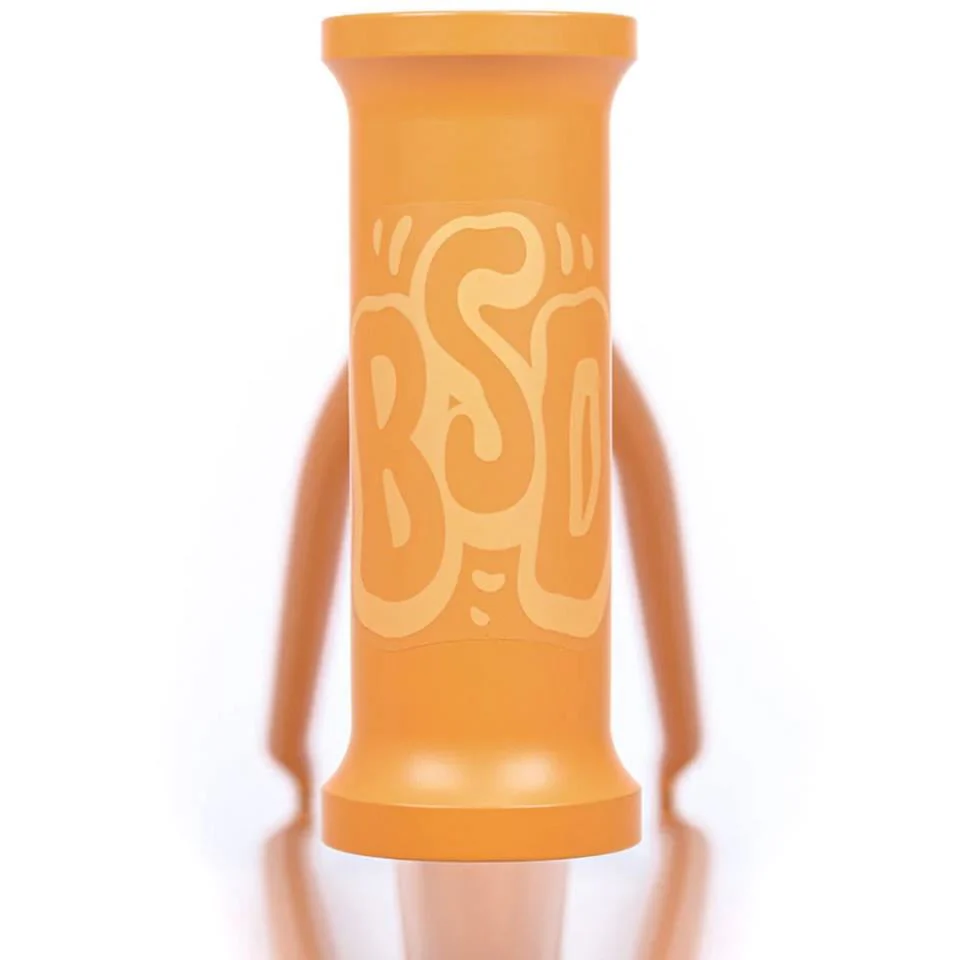

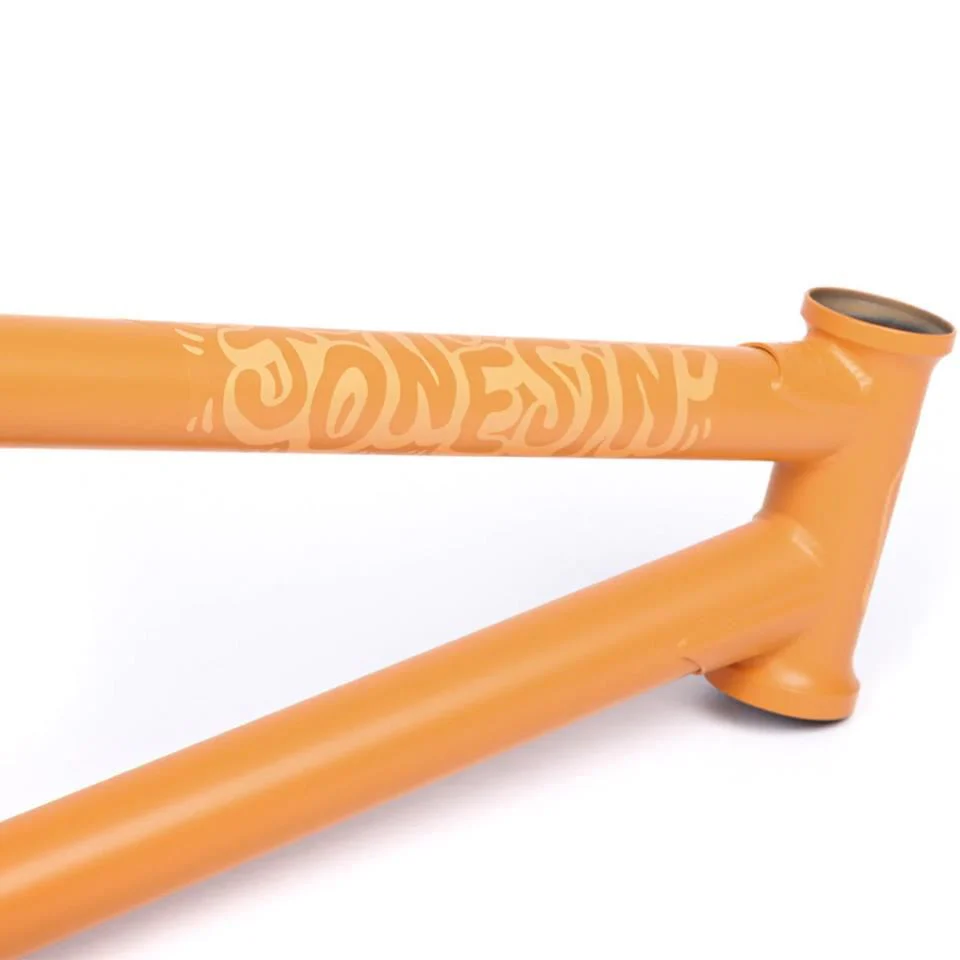

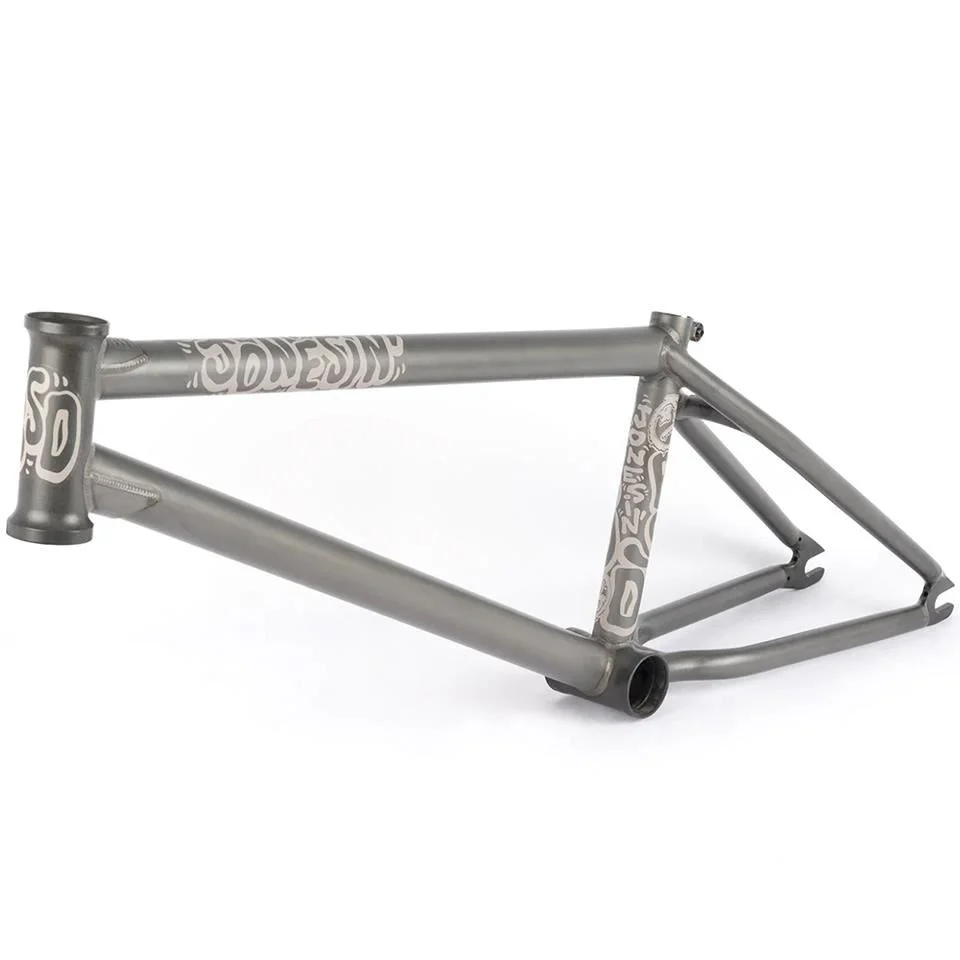

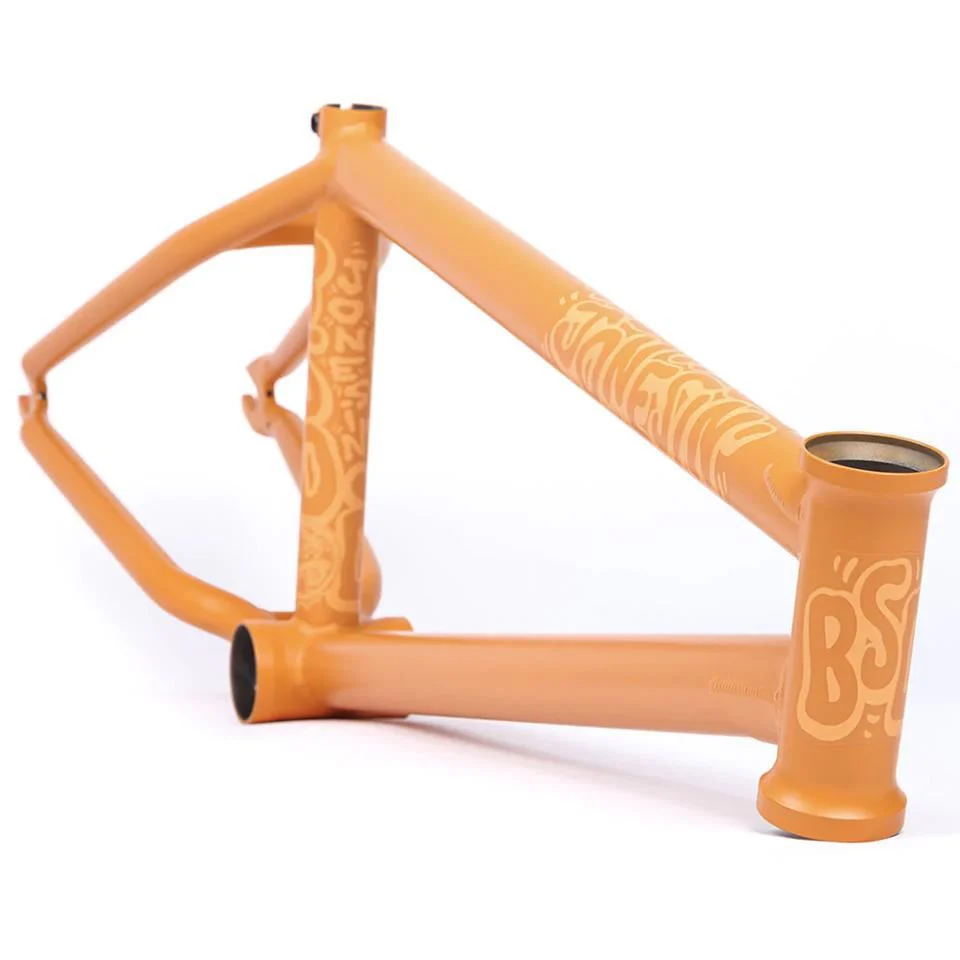

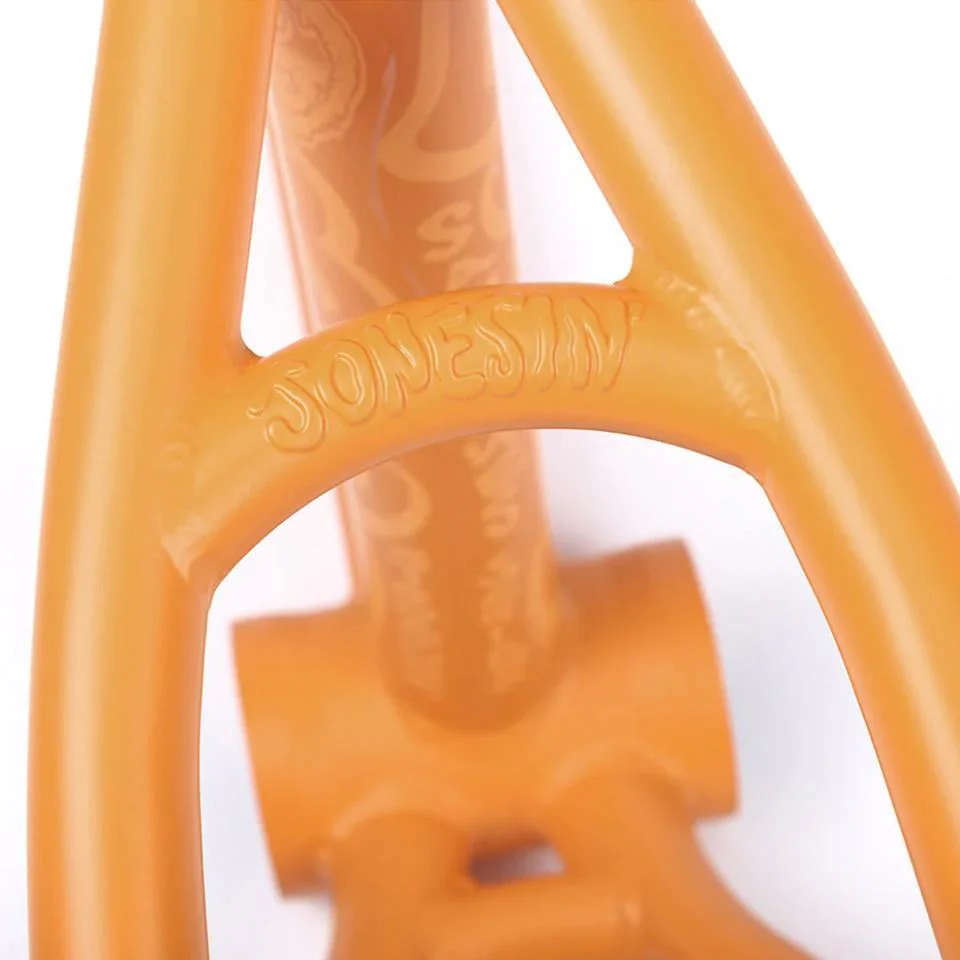

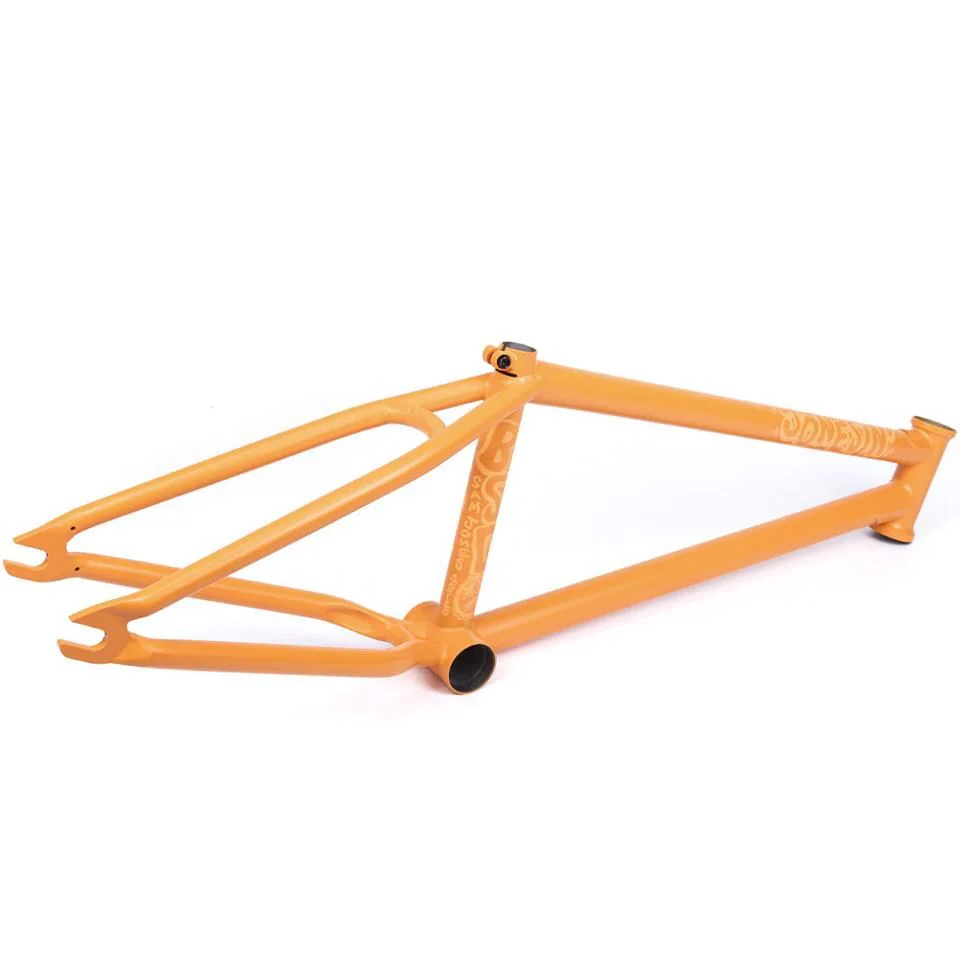

BSD Jonesin Frame

The BSD JONESIN’ frame is Sam Jones signature frame. As you may know Sam is a master of front end tricks and he designed his frame with a steep 76° headangle, short 12.7-13.2" rear end and a 8.9” standover as well as using BSD's new superscoop chainstay tubing for added tire clearance.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 76°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.7-13.2"
5. BB HEIGHT: TBC
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 8.9"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Intergrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Brakeless
12. GYRO TABS: None
13. WEIGHT: 5lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
